All K16 tables feature certified tolerances and superior machining accuracy through several flatness and finishing stages. Each hole undergoes a meticulous four-step process with fine boring for smoother, more accurate cavities. Rounded holes, table corners and a 50mm x 50mm side grid come standard.

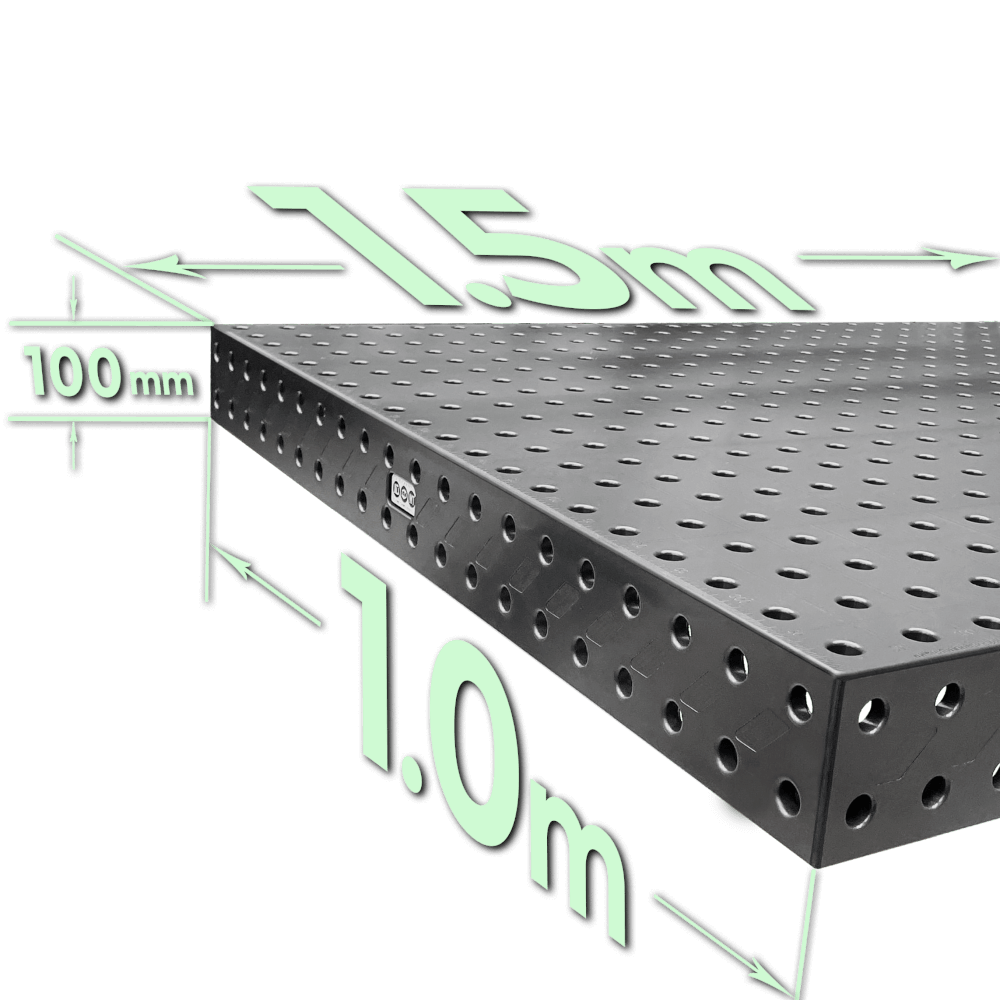

SIZE: 1500mm x 1000mm
MATERIAL: S355 Steel – Slightly better suited for TIG.
TREATMENT: Nitriding – Rust + Spatter + Hardened.

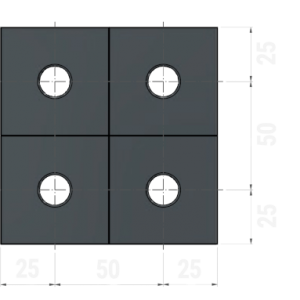

TOP GRID: Standard – 4 Holes Per 50mm².
SCALE (mm): Laser Etched – All 4 corners.
$3,600 Ex. GST
Light-duty welding table ideal for solo jobs with thin tube work. Lower cost, high precision. All K16 tables featured rounded holes and corners as standard.
SIZE: 1500mm x 1000mm
MATERIAL: S355 Steel – Slightly better suited for TIG.
TREATMENT: Nitriding – Rust + Spatter + Hardened.
TOP GRID: Standard – 4 Holes Per 50mm².
SCALE (mm): Laser Etched – All 4 corners.
MATERIAL: S355 – STEEL (Note: cast is only available for K28 Table tops).
PROPERTIES: Smooth surface, increased hardness (especially with nitriding treatment), cleaner ruler and grid etchings.
HARDNESS: Nitriding ~550HV.
DENSITY: 7.80 g/cm³.
TENSILE STRENGTH: 355 MPa.
BENEFITS: Huge hardness increase, spatter resistant, heat dispersion, rust resistant.
HARDNESS: Steel ~550HV.
BORE HOLES: 16mm.
TABLE TOP HEIGHT: 100mm.
PLATE THICKNESS: ~12mm.
HOLE GRID: 50mm – standard.
FLATNESS: ±0.1mm over 1 m².
HOLE DISTANCE: ±0.05mm.
HOLE DIAMETER: +0.05mm.
| Weight | 258 kg |
|---|---|
| Dimensions | 1550 × 1050 × 300 mm |
